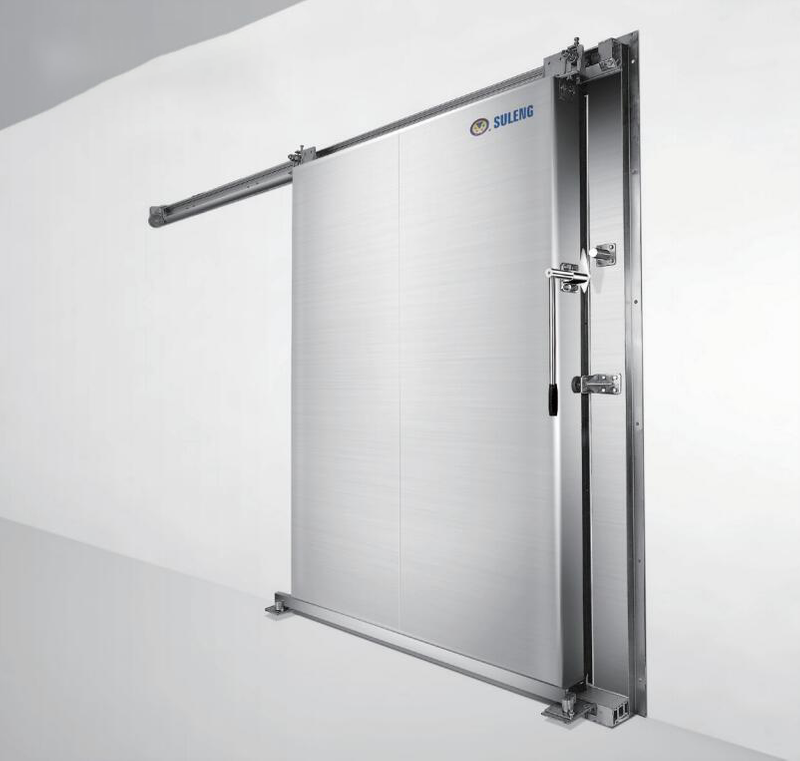

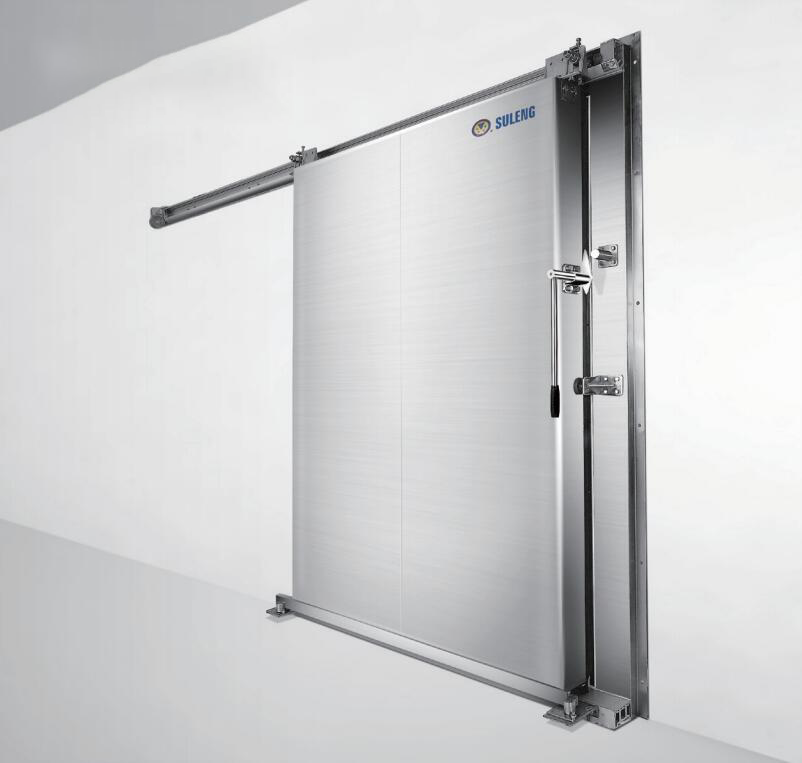

SL-SDPLM model series manual operation translalional cold-storage door,the door body is generaly used in SL-ZDLM model series electric cold-storage door,which is convenient of customersto upgrade the manually operated door to electric one.At the same fime,the utity model solves the problems that the ordnary manual roiating cold storage door with problems of heavyopening,large occupied area and high cost electric refrigerater door.The utlity model has its own knack in opening,transmission,sealing,etc.,and is well received by customers.
Application Scope
Applicable to the temperature of-40 ºC~+50 ºC ordinary cold storage,frozen room,high temperature box and so on.
Design Feature
·The structure of the door is a major breakthrough of our company after years ofresearch,is the domestic pioneering.
a.Door leaf:The fully enclosed whole frameless construction,fundamentally solvethe structure of wood or glass steel structure of refrigerator door too heavy,woodno corrosion proof,non-moistureproof,and glass steel has disadvantages such aspollution of food.The front side edge of the door is processed into an arc,and thedoor body is extremely firm,light and reliable.
b.Panel:Use high quality SUS304 stainless steel sheet and plate or color steelplate.
c.Heat preservation:High pressure foaming machine automatically pouringpolyurethane,with reliable insulation performance.
·Sealing strip:Use two idiosyncratic low temperature resistant,oll resistant,highelastic rubber sealing strips produced by our company.
·Electric heating:36v or 220V automatic constant temperature PTC electricheating.
·Track:High strength variable line type aluminum alloy,nylon wheel,runningsmoothly.open up and leave the door frame,closed down and press the door.Risevoluntarily and leave the door frame when opening,drop voluntarily and press thedoor frame.
Hardware:Stainless steel precision casting parts.
Type And Specification

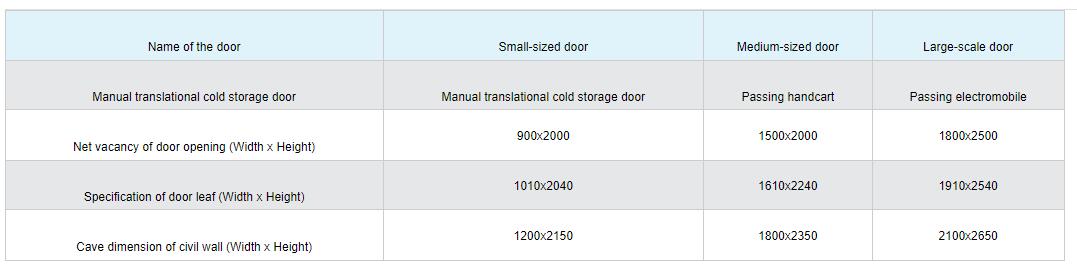

In order to meet the specific requirements of various cold storage,the doors can be divided into:small-sized door,medium-sized door,large-scale door and freezing room door according to the size of the openings,common specifications are shown in Sheet 1,special specifications we can help design and process.
SL-SDPLM model series manual operation translalional cold-storage door,the door body is generaly used in SL-ZDLM model series electric cold-storage door,which is convenient of customersto upgrade the manually operated door to electric one.At the same fime,the utity model solves the problems that the ordnary manual roiating cold storage door with problems of heavyopening,large occupied area and high cost electric refrigerater door.The utlity model has its own knack in opening,transmission,sealing,etc.,and is well received by customers.
Application Scope
Applicable to the temperature of-40 ºC~+50 ºC ordinary cold storage,frozen room,high temperature box and so on.
Design Feature
·The structure of the door is a major breakthrough of our company after years ofresearch,is the domestic pioneering.
a.Door leaf:The fully enclosed whole frameless construction,fundamentally solvethe structure of wood or glass steel structure of refrigerator door too heavy,woodno corrosion proof,non-moistureproof,and glass steel has disadvantages such aspollution of food.The front side edge of the door is processed into an arc,and thedoor body is extremely firm,light and reliable.
b.Panel:Use high quality SUS304 stainless steel sheet and plate or color steelplate.
c.Heat preservation:High pressure foaming machine automatically pouringpolyurethane,with reliable insulation performance.
·Sealing strip:Use two idiosyncratic low temperature resistant,oll resistant,highelastic rubber sealing strips produced by our company.
·Electric heating:36v or 220V automatic constant temperature PTC electricheating.
·Track:High strength variable line type aluminum alloy,nylon wheel,runningsmoothly.open up and leave the door frame,closed down and press the door.Risevoluntarily and leave the door frame when opening,drop voluntarily and press thedoor frame.
Hardware:Stainless steel precision casting parts.
Type And Specification
In order to meet the specific requirements of various cold storage,the doors can be divided into:small-sized door,medium-sized door,large-scale door and freezing room door according to the size of the openings,common specifications are shown in Sheet 1,special specifications we can help design and process.
