| Quantity: | |
|---|---|
Nominal pressure: 4.0MPa
Test pressure: 6.0MPa
Applicable temperature: -45℃ ~ +65℃
Applicable medium: Ammonia, Freon, CO2, etc.

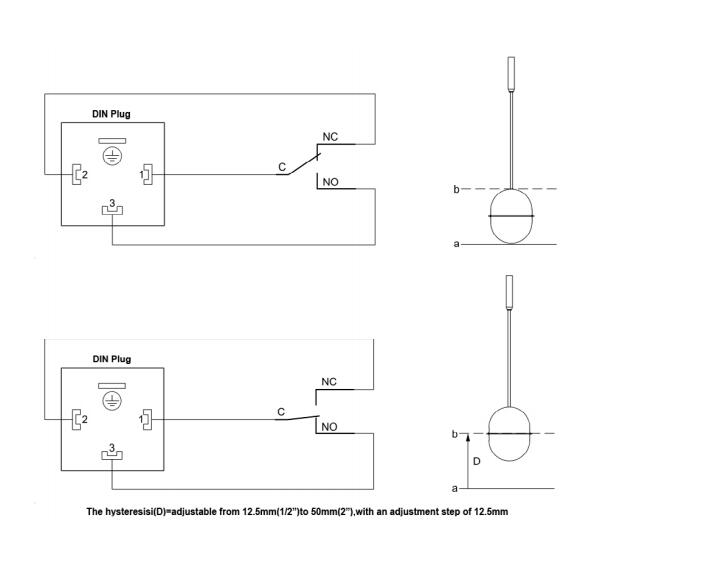

Microelectronic single pole double throw switches have two functions: normally open and normally closed 250Va.c/10A 30Vd.c/5A

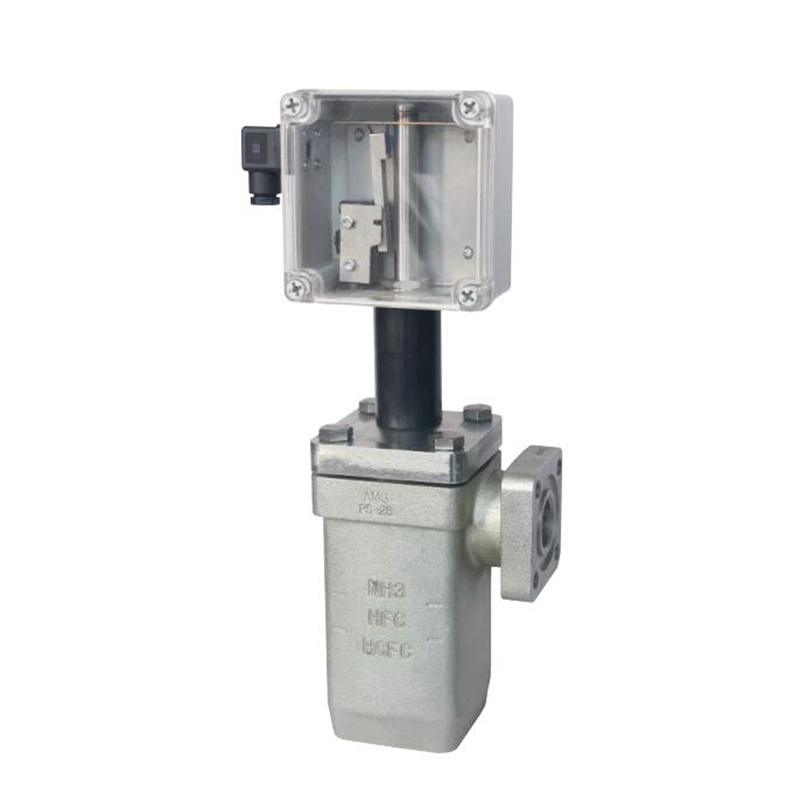

AKS38 is an electromechanical float level switch designed and produced based on the principles of buoyancy and magnetic field. It can send switching signals according to changes in liquid level, and can also be used as an alarm for high/low liquid levels.
The position of the floating ball changes due to the change of the liquid level inside the valve body, and when the contact point of the foating ball enters the micro electricity.In the sub switch magnetic feld, switching signals are generated under the action of magnetic force to achieve automatic control the process of liquid level.
The liquid level adjustment range is between 12.5mm and 50mm, and the adjustment step is 12.5mm. It is factory set The setting standard is 50mm.
Nominal pressure: 4.0MPa
Test pressure: 6.0MPa
Applicable temperature: -45℃ ~ +65℃
Applicable medium: Ammonia, Freon, CO2, etc.
Microelectronic single pole double throw switches have two functions: normally open and normally closed 250Va.c/10A 30Vd.c/5A
AKS38 is an electromechanical float level switch designed and produced based on the principles of buoyancy and magnetic field. It can send switching signals according to changes in liquid level, and can also be used as an alarm for high/low liquid levels.
The position of the floating ball changes due to the change of the liquid level inside the valve body, and when the contact point of the foating ball enters the micro electricity.In the sub switch magnetic feld, switching signals are generated under the action of magnetic force to achieve automatic control the process of liquid level.
The liquid level adjustment range is between 12.5mm and 50mm, and the adjustment step is 12.5mm. It is factory set The setting standard is 50mm.
