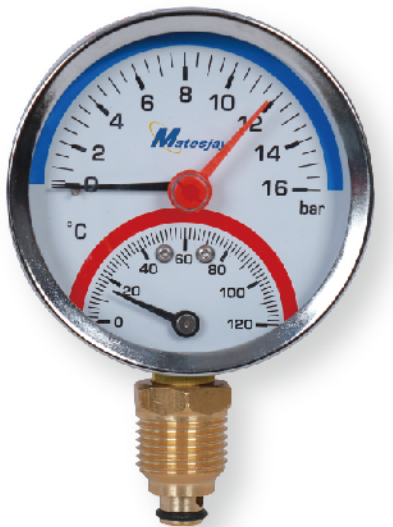

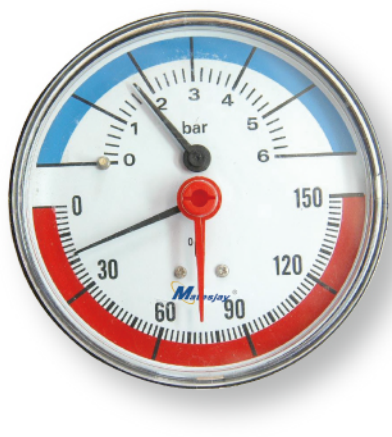

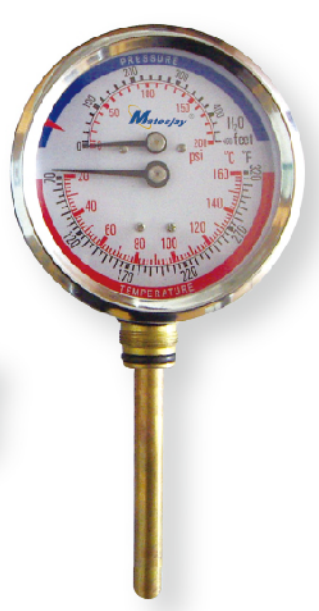

Tem-pressure gauge

Application

* Suitable for gaseous, liquid and oil which is none corrosive media;

* Combi-boilers with hot water and heating;*Heating system;

* Combined indication for pressure and temperature;

Product feature

* Conforms to the standard of the People’s Republic Of China General Pressure Gauge, GB/T1226-2017 and the standard of EN837-1;

*Size(mm):60、80、100;

*Permissible temperature:20-120℃/F 40-140℃/T 0-120℃/T 30-160℃/F;

*Range:0~15psi/kpa,0~75psi/kpa,0~100psi/kpa,0~200psi/kpa, 0~300psi/kpa;

*Accuracy class: ±1.6%F.S Temperature: ±2.5%F.S;

Specifications

*Meterial: Stainless steel, Black painted steel case;

*Connection:1/8* NPT 7/16-20UNF 5/16-24UNF;

*Installation form: Lower mount(LM), Center back mount(CBM), Back panel mount(BPM);

*Removable check valve prevents vapor from escaping;
