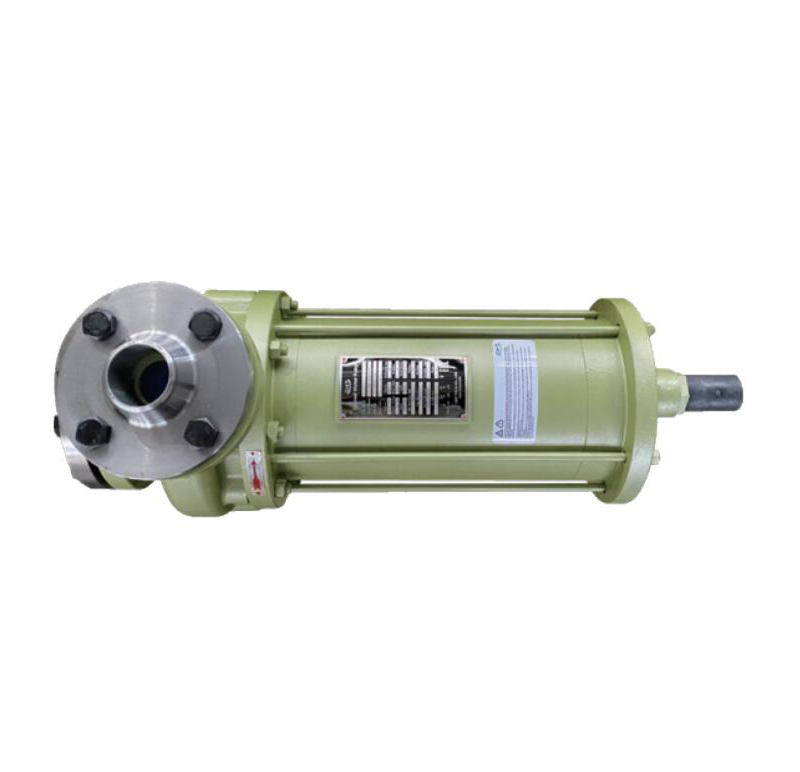

Refrigeration Canned Motor Pump Used in The Refrigeration Industry

CLS / Single-stage Series:

The CLS refrigeration pump is one with a single stage and in a high pressure internal circulation mode.

Work Scope

Capacity:5~65m³/h

Head:10~100m

Operating temp.:-50~+40ºC

Applicable Medim: ammonia(R717), Freon(R22/R12), silicon oil, CO2, etc.

Material/Pressure/Flanges

Casing: CS

Impeller: CS

Bearings: 2Cr13/FH82A

Shaft: 2Cr13

Rated Pressure: PN25

Flange STD:GB/T9113.1 PN25
