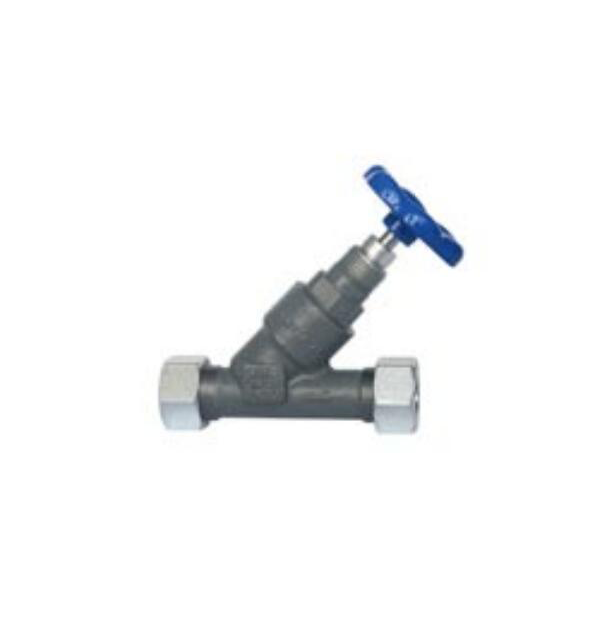

RVY15-20-K Card sleeve straight-through stop valve/control valve

Availability:
Quantity:
Inquire Add to Basket

Nominal pressure: 4.0MPa

Test pressure: 6.0MPa

Applicable temperature: -50℃ ~ +150℃

Applicable medium: ammonia, fluorine, propane,  propylene, etc.

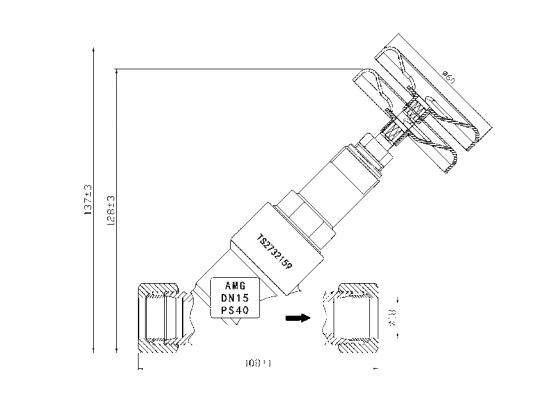

QQ截图20240520101921



Name
Type		 Size(mm)
φD φDO L H H1

straightthrough
Globe valve/
throttle valve		 RVY/RRY6-RK R3/8 10 92 100 /
RVY/RRY10-RK R1/2 14 92 100 /
RVY/RRY15-K 18 18 108 120 130
RVY/RRY20-K 25 25 146 135 145

straight-through
stop check valve		 VCY15-K 18 18 108 128 137
VCY20-K 25 25 146 160 173
