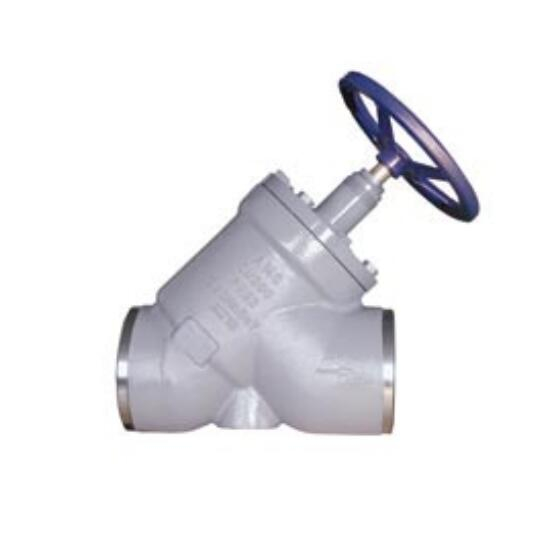

RVY100-250-D cast steel straight-through stop valve

Availability:
Quantity:
Inquire Add to Basket

Nominal pressure: 4.0MPa

Test pressure: 6.0MPa

Applicable temperature: -50℃ ~ +150℃

Applicable medium: ammonia, fluorine, propane,  propylene, etc.

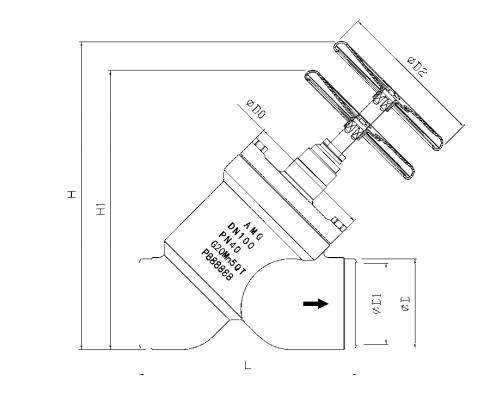

QQ截图20240521130219



Name
Type		 Size(mm)
Weight
φD L H1 H φDO

Straight-through
stop valve		 RVY100-D 108 264 340 375 156 16
RVY125-D 133 322 405 450 193 30
RVY150-D 159 370 480 540 219 39
RVY200-D 219 464 615 680 276 90
RVY250-D 273 550 715 790 334 110
