Technical parameters
Nominal pressure: 5.2MPa
Test pressure: 7.8MPa
Applicable temperature: -45℃ ~ +120℃
Applicable medium: Ammonia, Freon, CO2, etc
Characteristics
AICM 20-65: Suitable for all refrigerants including ammonia, carbon dioxide, and non corrosive gases/liquids. AICM 100-150: Suitable for refrigerant ammonia.

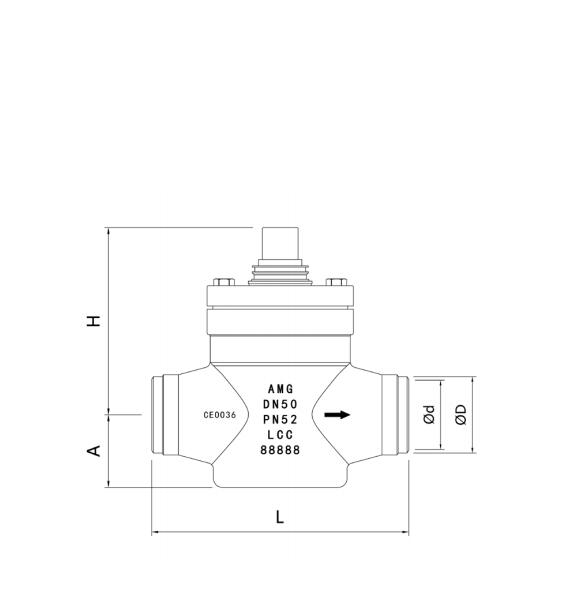

The motor valve consists of four components: valve body, valve cover, functional module, and actuator. The valve cover and functional module are integrated in AICM 20-65.

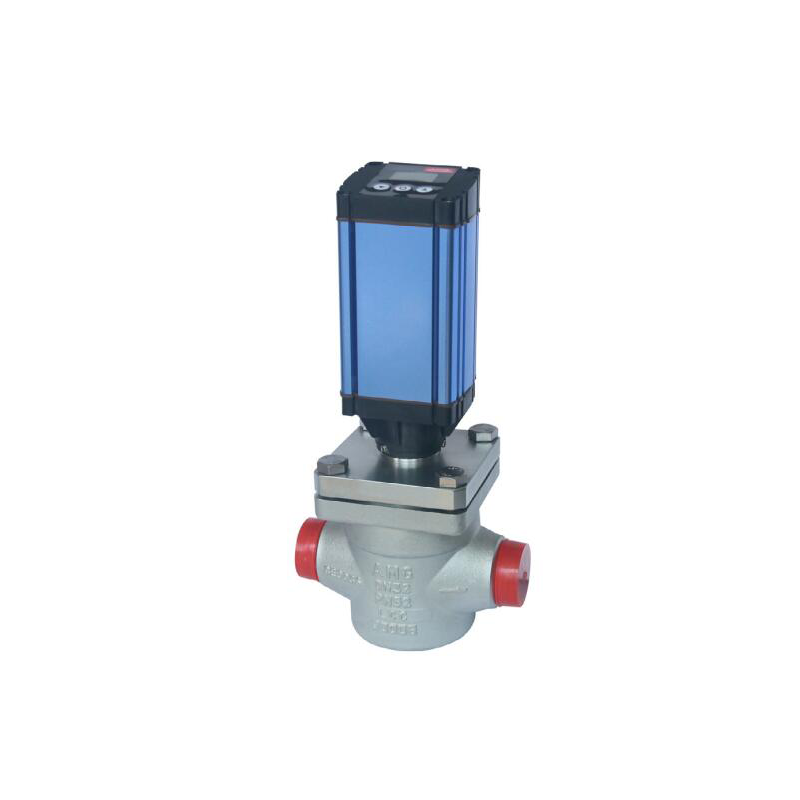

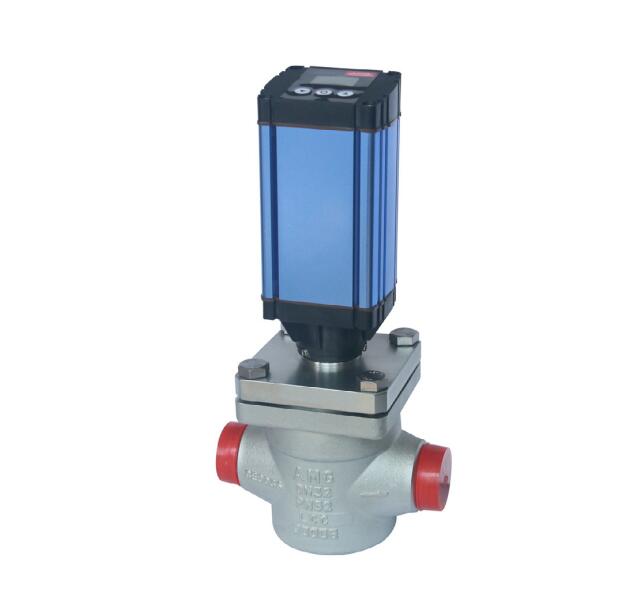

AICM is an motor valve directly driven by the actuator AICAD (industrial control actuator with display screen).

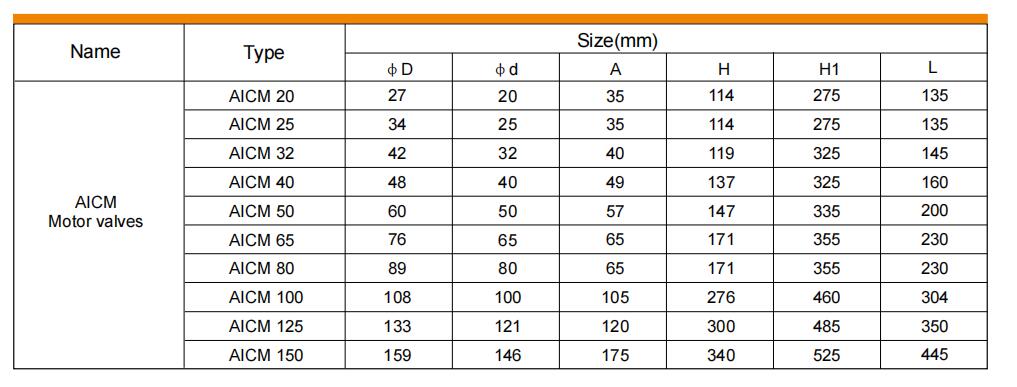

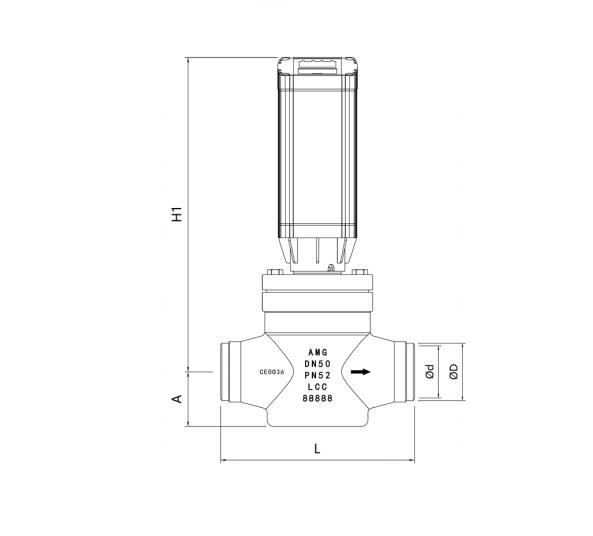

The balanced design of the AICM motor valve core enables the AICM from DN20 to DN150 to be driven by only two sizes of AICAD actuators. The assembly of AICM motor valve and AICAD actuator is very compact.
