Technical parameters:
Nominal pressure: 2.8MPa Applicable temperature:-50℃~+150℃
Test pressure: 4.2MPa Applicable medium:ammonia,fluorine,etc.
Characteristics:

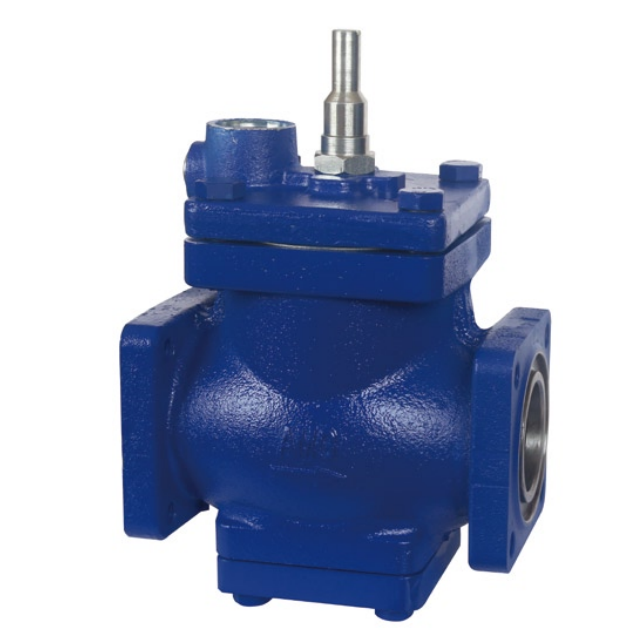

- Flow regulating valves, servo-operated by different pilot valves screwed-in the
main valve or mounted in an external pilot line.
- The AM1 are designed to use with ammonia and other common fluorinated
refrigerants, for liquid, suction, discharge or defrosting lines. They have one
port only, thus, can only screw-in one pilot valve only.
- The thread to screw-in the pilot valves is M24x1.5, and the pressure gauge
thread is 1/4"BSP.
- The degree of opening of AM1 valves is function of the differential pressure
between the inlet and outlet,so if the pressure difference is Ap=0.3 bar,the
main valve will be fully open,and if it is Ap =0.2~ 0.3 bar, the degree
of opening will be correspondingly proportional to △p.
