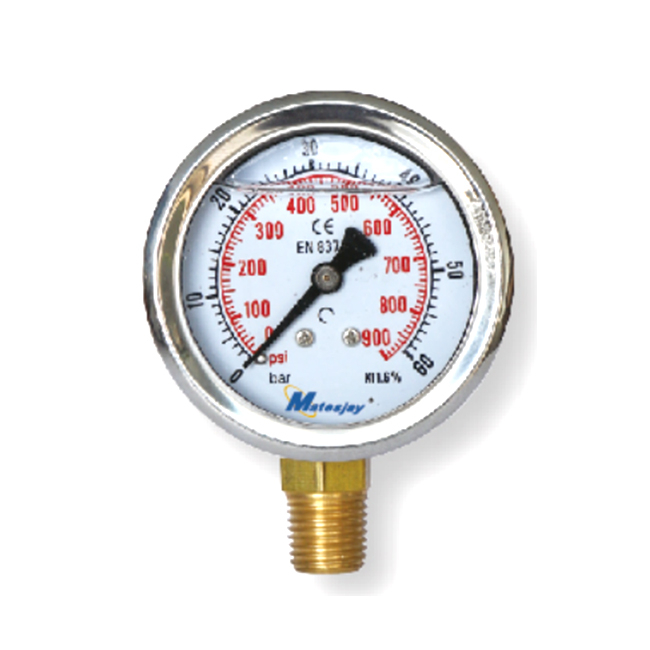

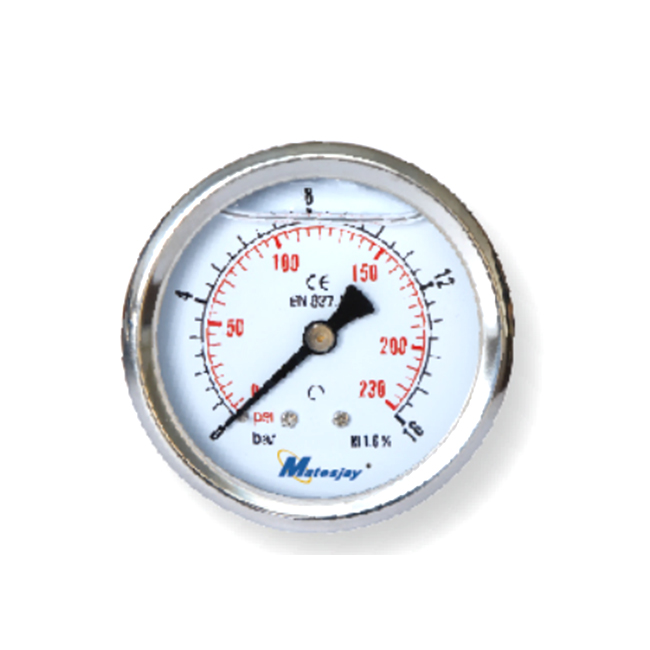

Liquid Filled Pressure Gauge

Application

* For measuring points with high dynamic pressure loads and vibrations;

* For gaseous and liquid media that arenot highly viscous or crystallizing and will not attack copper alloy parts;

* Engineering machinery, Testing equipment；

* Medical engineering , Firefighting equipment;

* Hydraulic and pneumatic system;

Product feature

* Conforms to the standard of the People’s Republic Of China General Pressure Gauge, GB/T1226-2017 and the standard of EN837-1;

* Size(mm):40、50、60、70、80、90、100、125、150、200;

* Permissible temperature: Ambient :-20....+60℃,Media:+60℃(maximum);

* Accuracy class: ±1.0%F.S ±1.6%F.S ±2.5%F.S;

* Filling liquid: Glycerine, silicone;

* Range:0~60MPa;

* Protection grade: IP67;

Specifications

* Material: Stainless steel;

* Connection: NPT PT BSP(1/8" 1/4"3/8" 1/2")M14×1.5 M20×1.5;

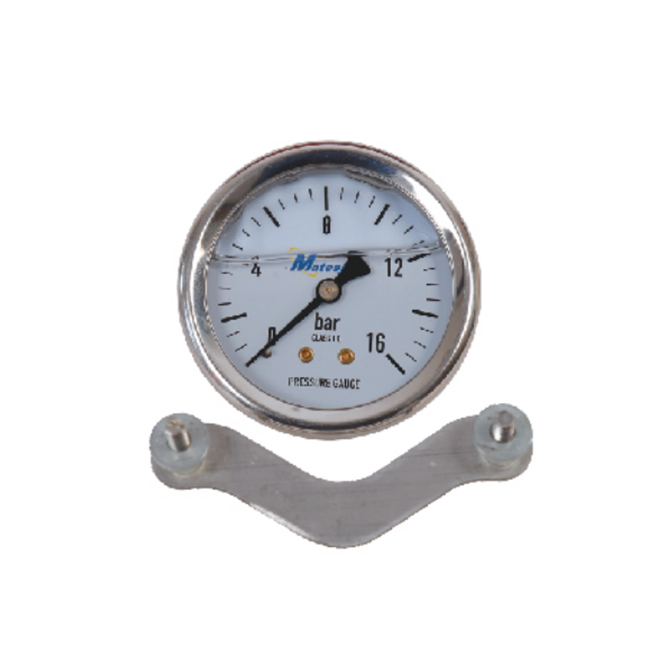

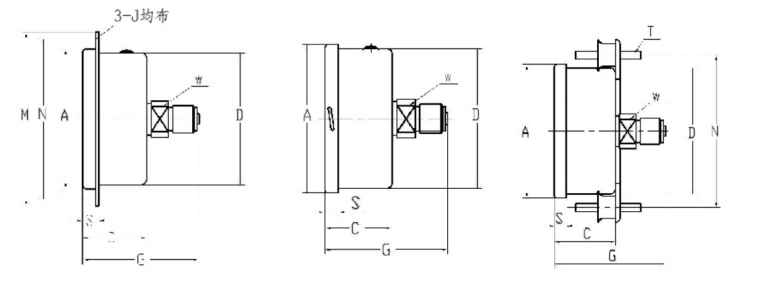

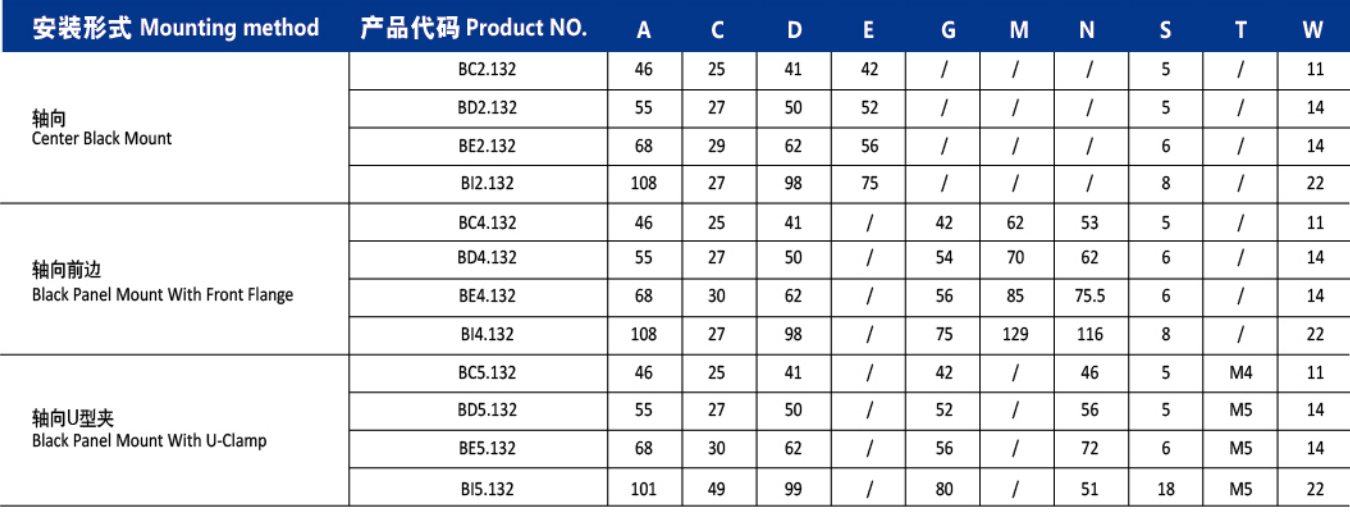

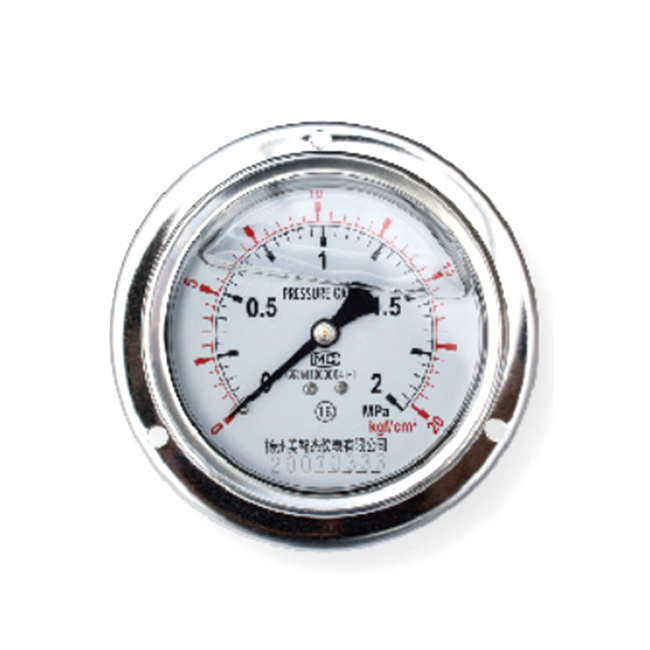

* Installation form: U-clam bracket, Lower mount(LM), Center back mount(CBM), Lower back mount(LBM),Back panel mount(BPM);
