Product features

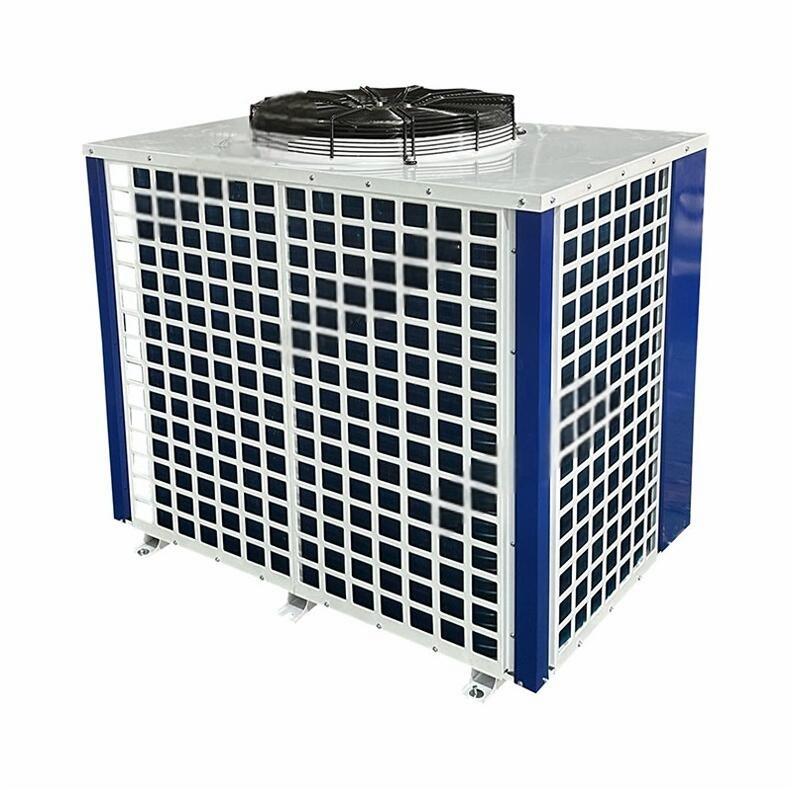

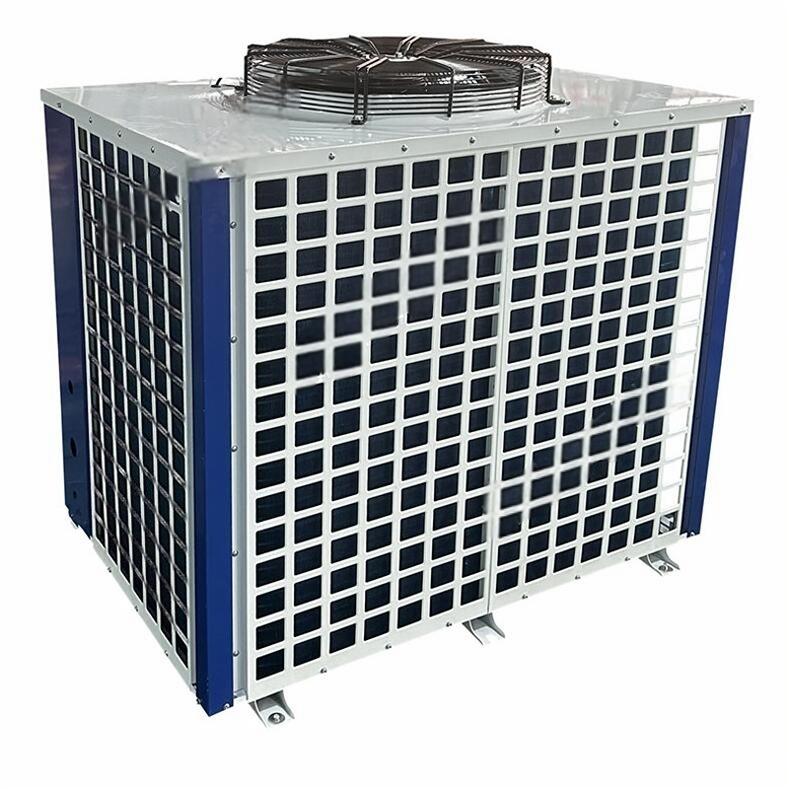

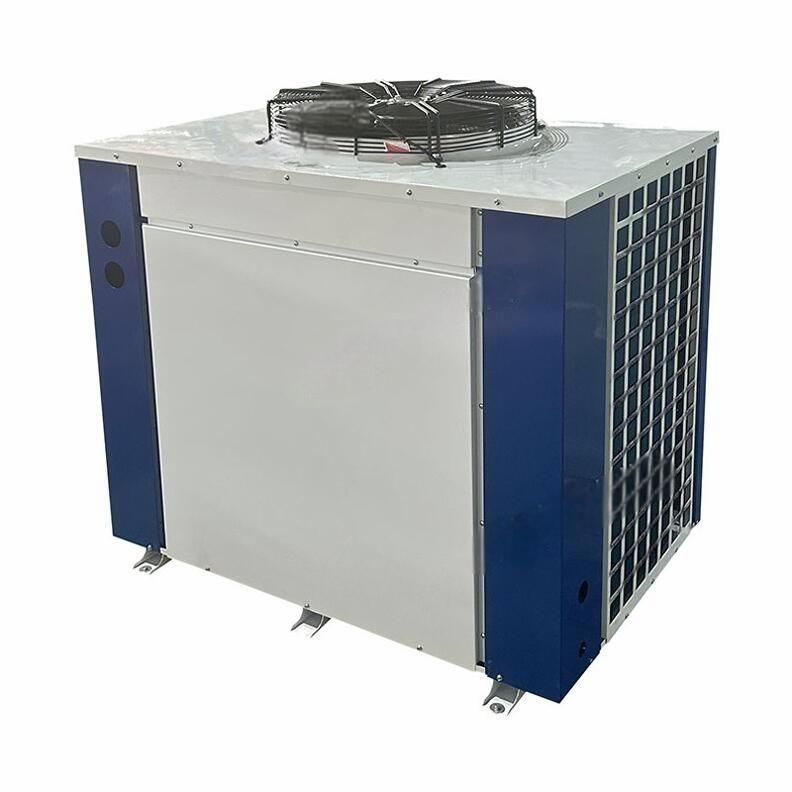

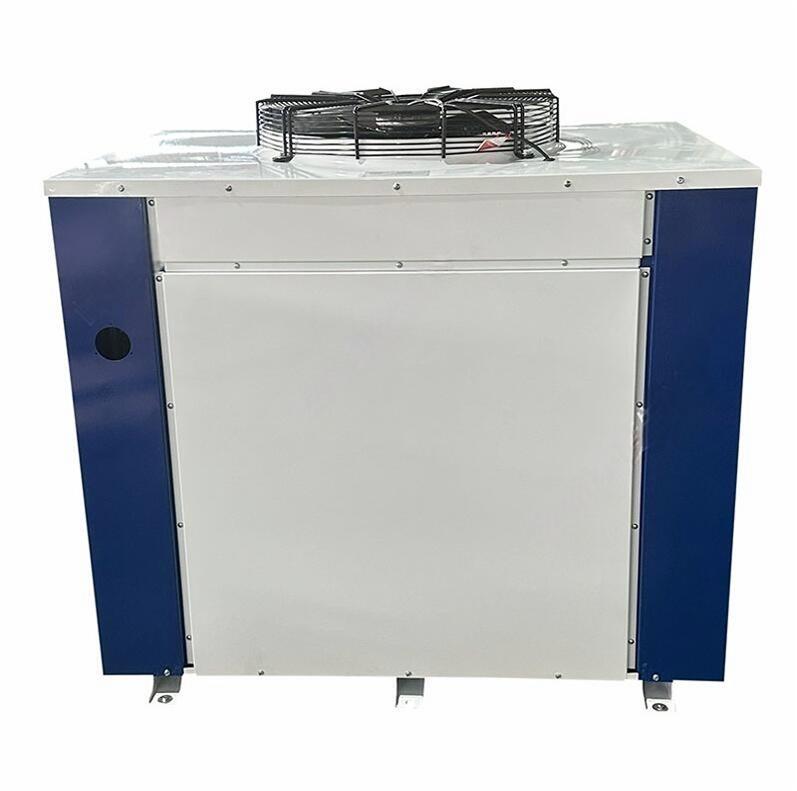

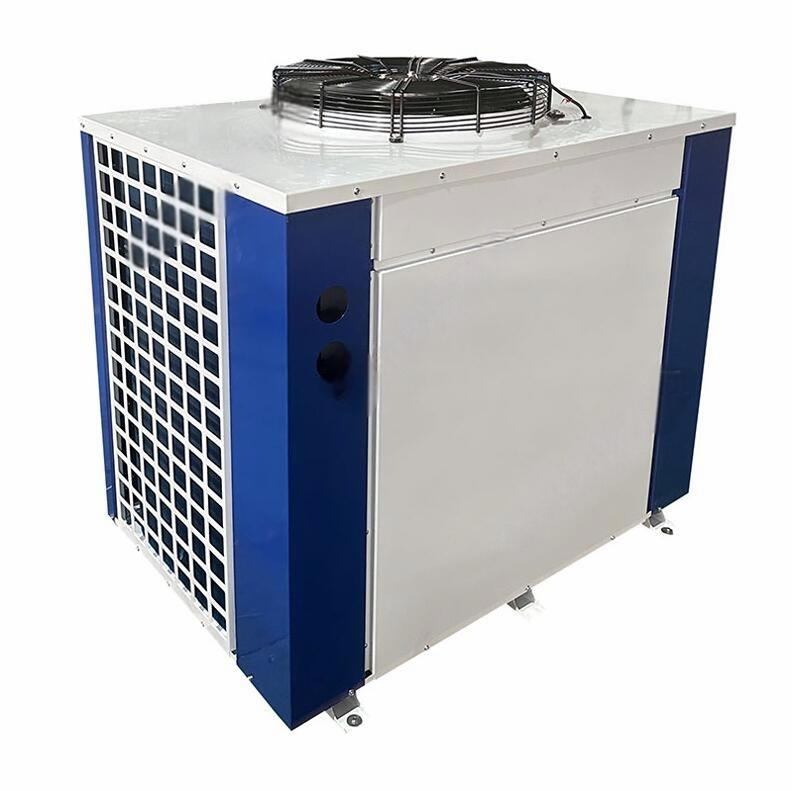

It adopts massive structure of box type which is of compact size and nice appearance.
The coiler is the high-quality cooper pipe which adopts the mechanical tube expansion.The copper pipe and the fins joint tightly which can provide great cooling effect.
It adopts outer rotor blower with nice appearance and low noise.
The coiler is done with the air-tight test under the air pressure of 2.9 MPa,which can guarantee the seal ability of the product pipes.
All brands of compressors can be installed inside the box body.
Product options
The shell is used with stainless steel plates.
The colors of the shell are inlaid assembled.
Below 60 decibel
Non standard design can be carried out according to customer requirements.
| Model | Rated capacity Kw | Fan motor | Voltage V | Overall size | Installation size | |||||||
Dameter (φ-mm) | Air Volume (m3/h) | QTY power NxW | A mm | B mm | C mm | D mm | E mm | Liquid inlet φ-mm | outlet φ-mm | |||
| FNU-500 | 14.7 | 450 | 5000 | 1×250 | 380 | 800 | 750 | 870 | 760 | 530 | 19 | 16 |
| FNU-600 | 17.6 | 500 | 7000 | 1×450 | 380 | 785 | 800 | 880 | 515 | 765 | 19 | 16 |
| FNU-700 | 17.6 | 500 | 7000 | 1×450 | 380 | 1000 | 750 | 870 | 960 | 530 | 19 | 16 |
| FNU-800 | 22.4 | 450 | 10000 | 2×250 | 380 | 1260 | 800 | 880 | 990 | 765 | 25 | 19 |
| FNU-1000 | 25.6 | 500 | 14000 | 2×450 | 380 | 1460 | 800 | 880 | 1190 | 765 | 25 | 19 |
| FNU-1200 | 32.1 | 500 | 14000 | 2×450 | 380 | 1460 | 800 | 980 | 1190 | 765 | 25 | 19 |
| FNU-1500 | 38.4 | 550 | 17000 | 2×650 | 380 | 1460 | 800 | 980 | 1190 | 765 | 28 | 22 |
| FNU-1800 | 44.8 | 550 | 17000 | 2×650 | 380 | 1460 | 800 | 980 | 1190 | 765 | 28 | 22 |
| FNU-2000 | 51.2 | 600 | 21600 | 2×860 | 380 | 1660 | 900 | 980 | 1390 | 870 | 28 | 22 |
| FNU-2500 | 64.2 | 550 | 26000 | 3×650 | 380 | 2110 | 880 | 1070 | 1750 | 850 | 35 | 22 |
