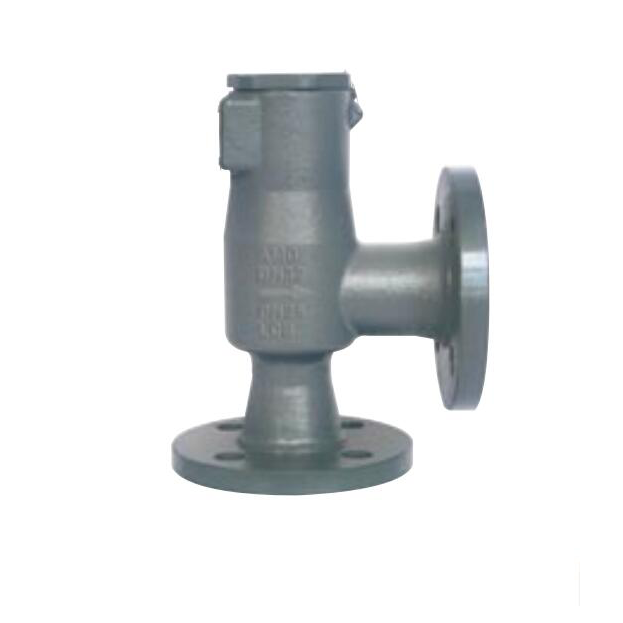

Flange connection full lift safety valve

Availability:
Quantity:
Inquire Add to Basket

Nominal pressure: 2.5MPa

Test pressure: 3.75MPa

Applicable temperature: -50℃~+150℃

Applicable medium: ammonia, fluorine, propane,  propylene, etc.

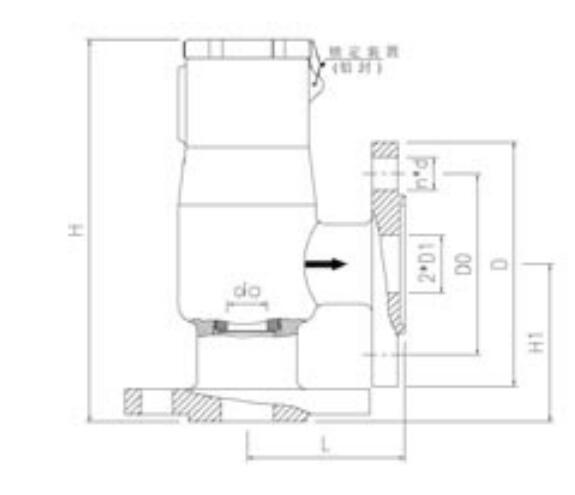

QQ截图20240520132314


Valve Type
DN		 H1 H L D DO d0 D1 nxd
mm
A42F-25 15 81 167 66 95 65 12 22 4X14
20 81 167 66 105 75 12 22 4X14
25 82 183 86 115 85 18 30 4X14
32 95 219 95 135 100 22 38 4X18
50 111 287 95 135 100 34 45 4X18
