Technical parameters
Nominal pressure: 5.2MPa
Test pressure: 7.8MPa
Applicable temperature: -45℃ ~ +120℃
Applicable medium: Ammonia, Freon, CO2, etc.

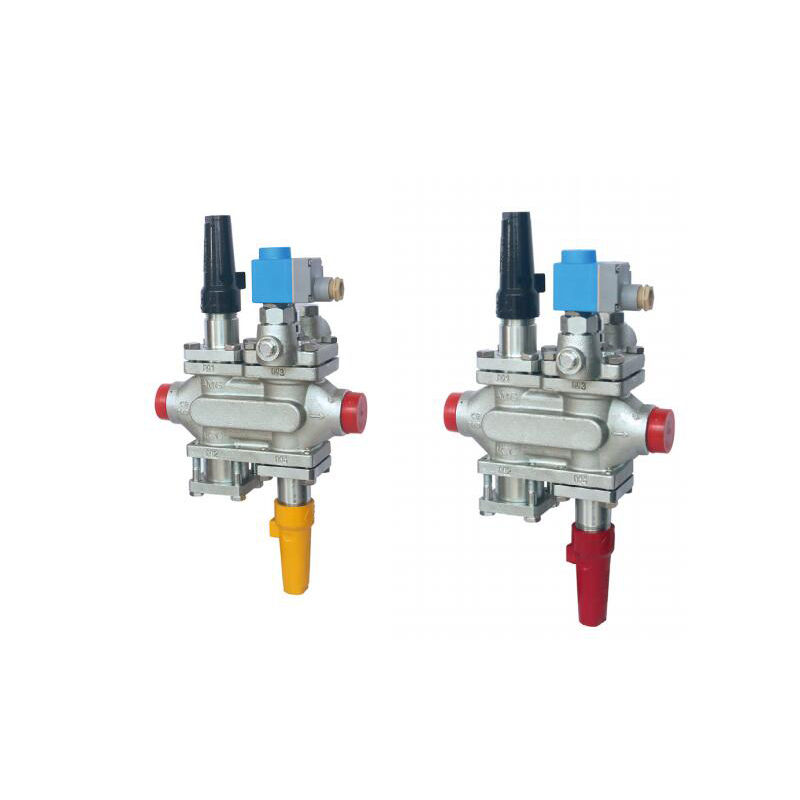

The AICF combination valve integrates multiple functions into one, which can replace a series of traditional mechanical valves, solenoid valves, and electric valves.
AICF combination valve is designed for low-pressure and high pressure refrigerants and can be used in discharge pipelines,hot gas pipelines,and liquid pipelines.
The V-shaped flow port on the control module ensures optimal adjustment accuracy, especially under partial load conditions.

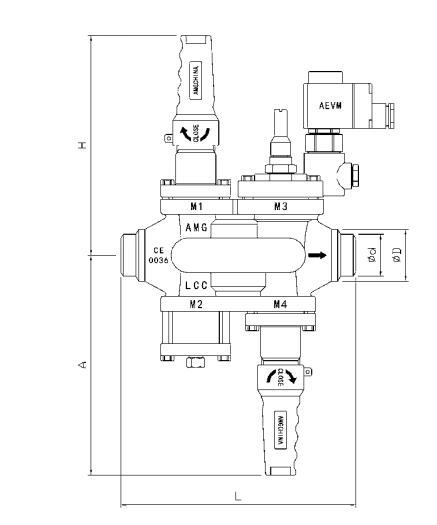

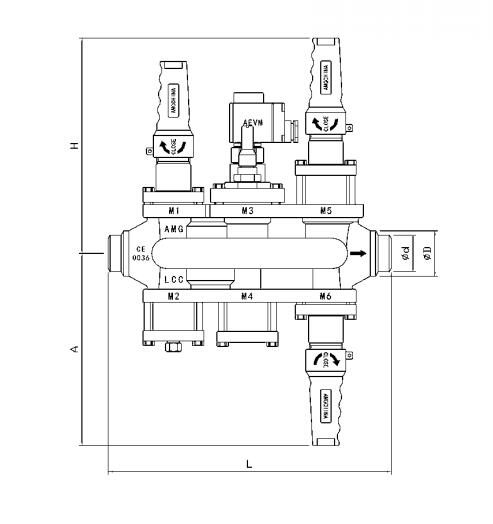

AICF has four or six modules, and the modular concept provides multiple different interface types and sizes for each valve body. Valve maintenance is achieved through maintenance or replacement of functional modules.
The side interface can be connected to pressure gauges, sensors, sight glasses, etc.
Technical parameters
Nominal pressure: 5.2MPa
Test pressure: 7.8MPa
Applicable temperature: -45℃ ~ +120℃
Applicable medium: Ammonia, Freon, CO2, etc.
The AICF combination valve integrates multiple functions into one, which can replace a series of traditional mechanical valves, solenoid valves, and electric valves.
AICF combination valve is designed for low-pressure and high pressure refrigerants and can be used in discharge pipelines,hot gas pipelines,and liquid pipelines.
The V-shaped flow port on the control module ensures optimal adjustment accuracy, especially under partial load conditions.
AICF has four or six modules, and the modular concept provides multiple different interface types and sizes for each valve body. Valve maintenance is achieved through maintenance or replacement of functional modules.
The side interface can be connected to pressure gauges, sensors, sight glasses, etc.
