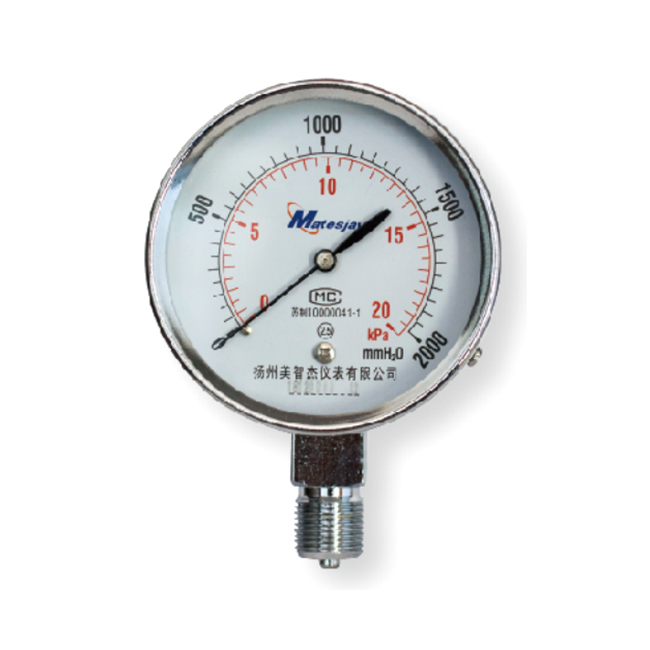

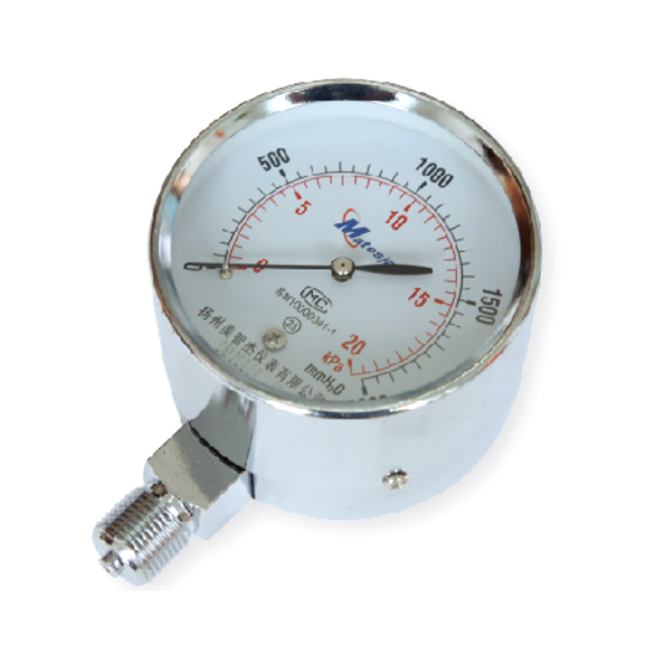

Capsule Pressure Gauge

Application

*Suitable for measuring small pressure(less than60Kpa);

*Heating system;

*Air conditioning system;Medical engineering Product feature

*Conforms to the standard of the People's Republic Of China General Pressure Gauge , GB/T1226-2017 and the standard of EN837-1;

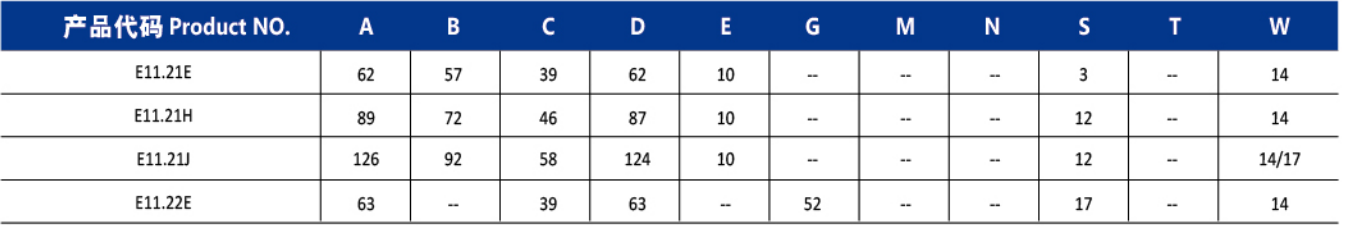

*Size(mm):60、90、125;

*Accuracy class:±1.6%F.S ±2.5%F.S;

*Range: 0~100Kpa

*Protection grade: IP65;Specifications

*Meterial: Steel with electroplate,cataphoretic,painted etc;Stainless steel

*Connection: NPT PT BSP(1/8*1/4*3/8*1/2")M14×1.5 M20×1.5;

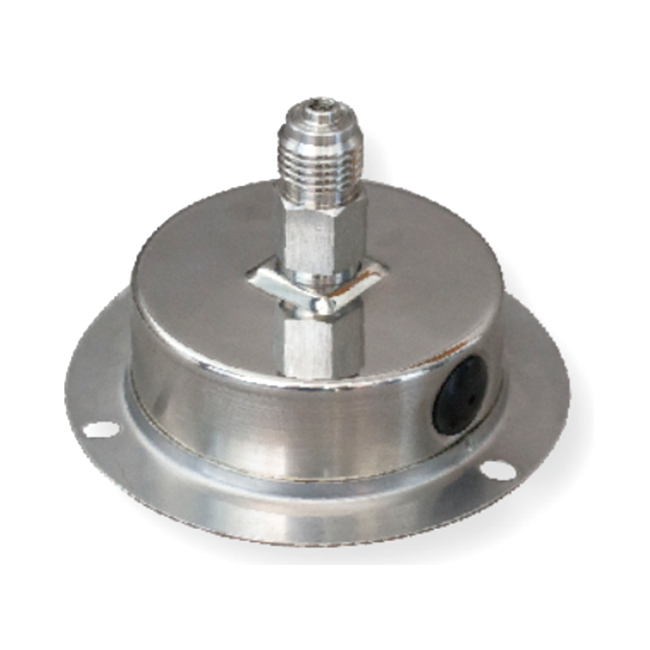

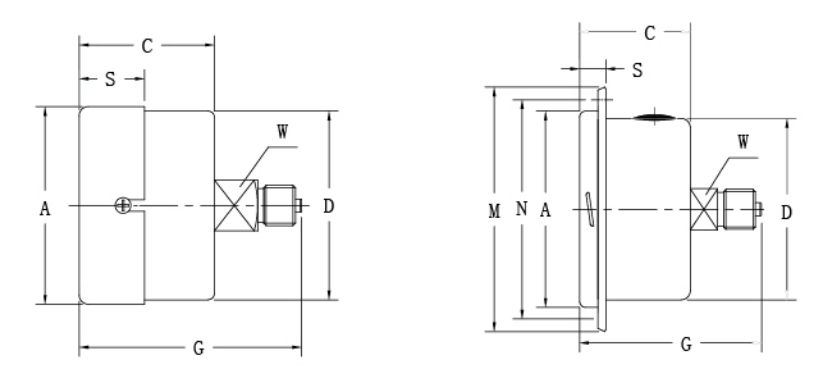

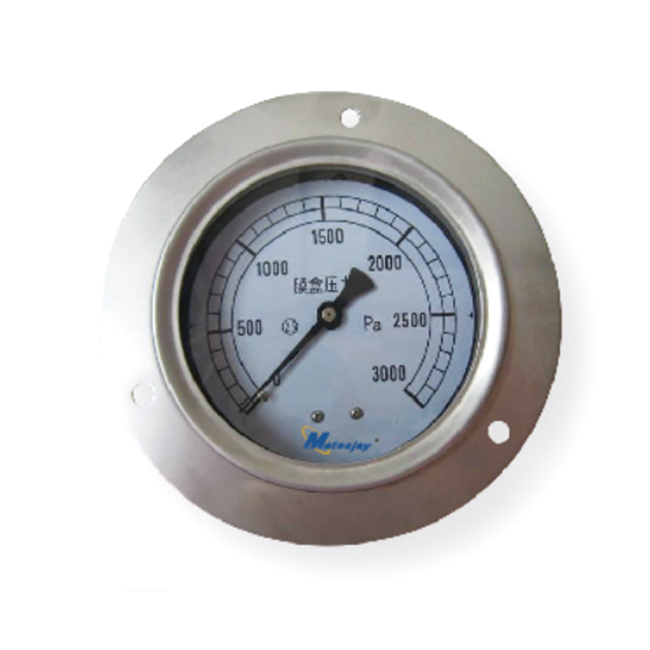

*Installation form:Lower mount(LM),Center back mount(CBM),Back panel mount(BPM);
