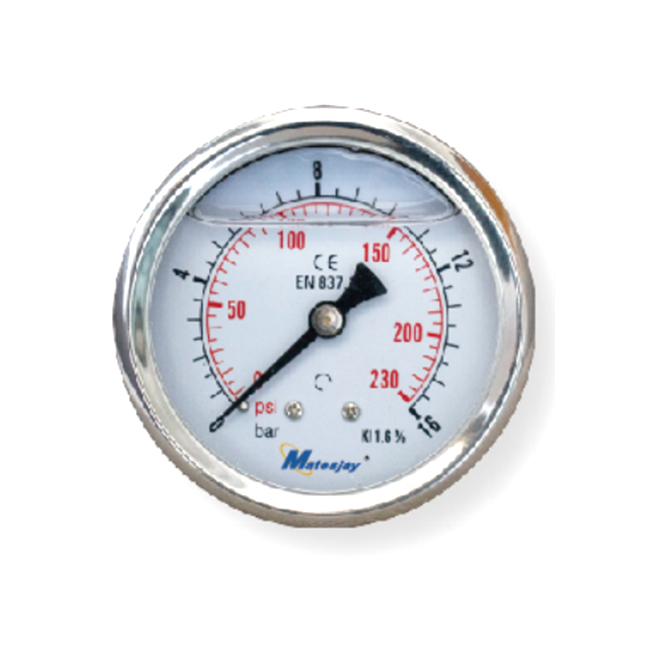

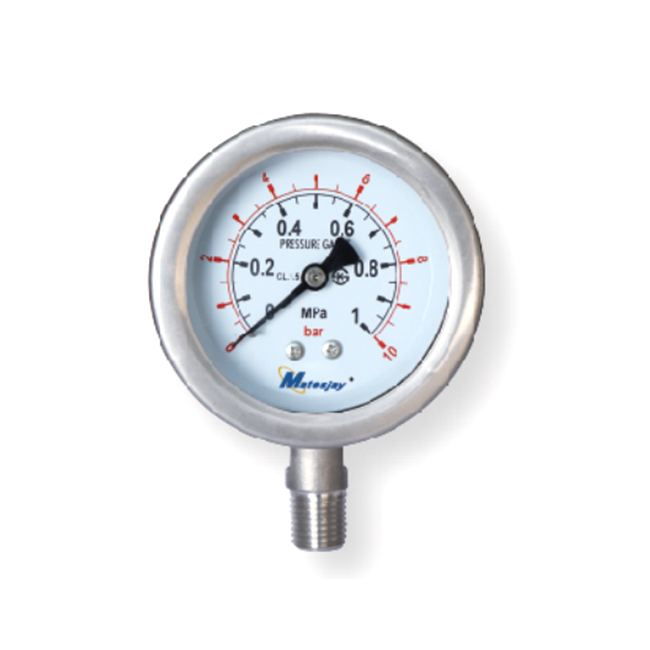

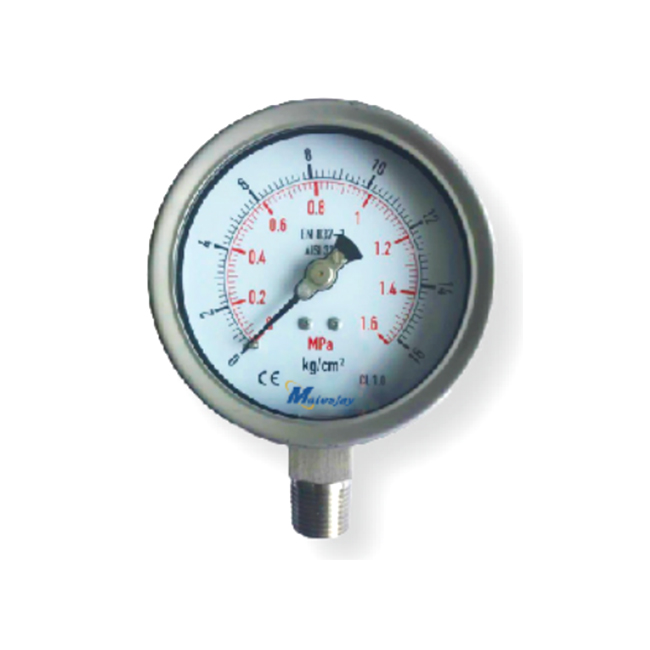

All-stainless Steel Gauge

Application

*Suitable for corrosive environments and gaseous or liquid media;

* For applications with high dynamic pressure pulsations or vibration;

*Firefighting equipment,chemical/petrochemical, on and offshore, environmental technology;

*Outdoor monitoring equipment;

*Medical engineering

Product feature

*Conforms to the standard of the People’s Republic Of China General Pressure Gauge, GB/T1226-2017 and the standard of EN837-1;

*Size(mm):40、50、60、70、80、90、100、125、150、200;

*Permissible temperature: Ambient :-20.....+60℃,Media:+60℃(maximum);

*Accuracy class:±1.0%F.S ±1.6%F.S ±2.5%F.S;

*Range:0~100MPa;

*Protection grade: IP67;

Specifications

*Material:316 SS;

*Connection: NPT PT BSP(1/8"1/4"3/8"1/2")M14×1.5 M20×1.5;

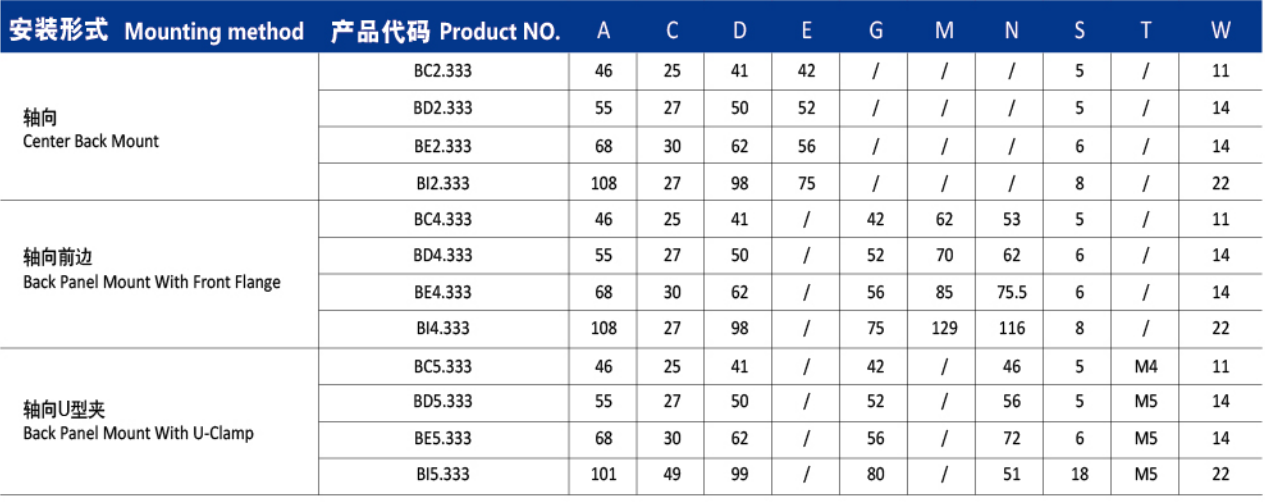

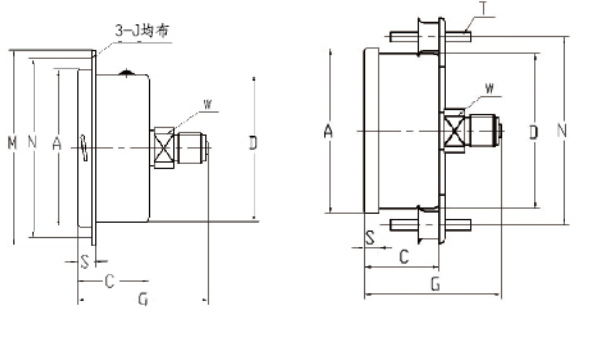

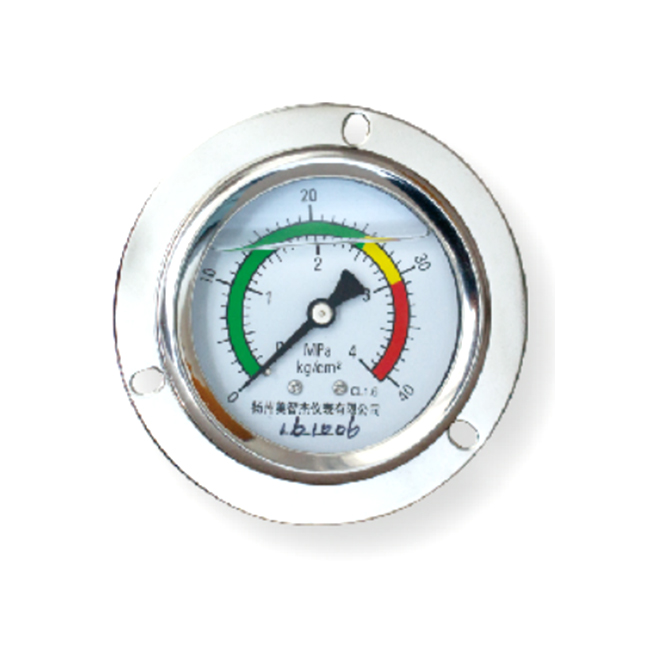

*Installation form: U-clam bracket, Lower mount(LM), Center back mount(CBM), Lower back mount(LBM),Back panel mount(BPM);
