Technical parameters
Nominal pressure: 5.2MPa
Test pressure: 7.8MPa
Applicable temperature: -45℃ ~ +120℃
Applicable medium: Ammonia, Freon, CO2, etc.

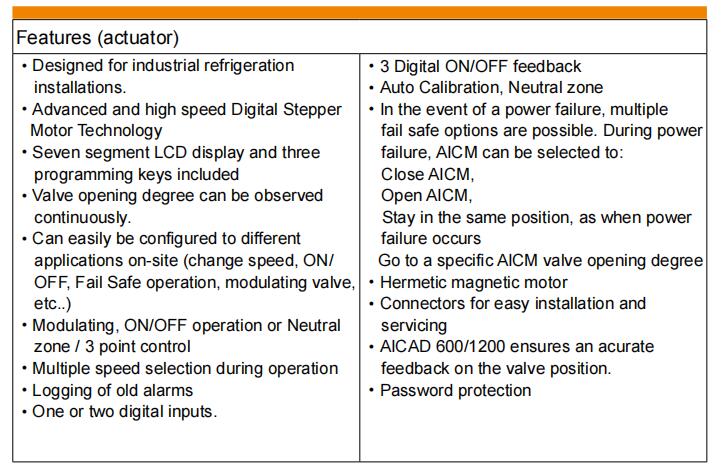

Characteristics

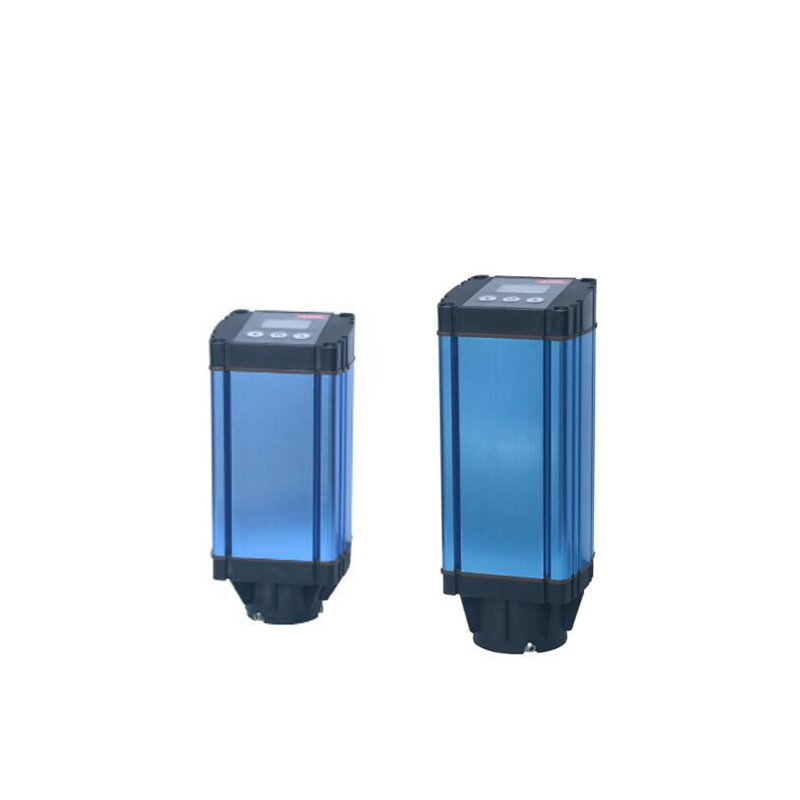

Actuator types AICAD 600 and AICAD 1200 are dedicated for use with AICM motor operated valves. There are only two sizes of AICAD actuators that cover the range of valves from AICM 20 to AICM 150.
The AICAD is controlled via a modulating analogue signal (e.g. 4-20 mA/2-10 V) or a digital ON/OFF signal. AICAD incorporates an advanced MMI (Man Machine Interface), including continuous display of Opening Degree, which gives the user a very advanced and flexible setup procedure that can meet many different applications.
Technical parameters
Nominal pressure: 5.2MPa
Test pressure: 7.8MPa
Applicable temperature: -45℃ ~ +120℃
Applicable medium: Ammonia, Freon, CO2, etc.
Characteristics
Actuator types AICAD 600 and AICAD 1200 are dedicated for use with AICM motor operated valves. There are only two sizes of AICAD actuators that cover the range of valves from AICM 20 to AICM 150.
The AICAD is controlled via a modulating analogue signal (e.g. 4-20 mA/2-10 V) or a digital ON/OFF signal. AICAD incorporates an advanced MMI (Man Machine Interface), including continuous display of Opening Degree, which gives the user a very advanced and flexible setup procedure that can meet many different applications.
